CONN PLUG 2POS 1.5 SERIES BLACK
The AMP Superseal 1.5mm series housing for female terminals is the 282080-1 from TE Connectivity. So this article is going to talk about more detailed information about 282080-1.
282080-1
The AMP Superseal 1.5mm series housing for female terminals is the 282080-1 from TE Connectivity. It's a two-position sealed black housing with a pitch spacing of 6mm. 282080-1 has below features such as Housing material is polyamide 66, Integrated with locking feature, Single row housing suitable with a mating tab width of 1.5mm, and suitable for Wire to board/device, wire connector system.
Connector & Housing Type: Housing for Female Terminals
Connector System: Wire-to-Board, Wire-to-Device, Wire-to-Wire
Sealable: Yes
Hybrid Connector: No
Primary Locking Feature: On the Terminal
Number of Positions: 2
Number of Rows: 1
Operating Voltage (VDC): 24
Nominal Voltage Architecture (V): 12, 24
Body Material: PA GF
Cable Exit Angle: 180°
Primary Product Color: Black
Connector Code: Z
Product Height : 32.2 mm [ 1.268 in ]
Product Length : 17.1 mm [ .673 in ]
Product Width : 9.3 mm [ .366 in ]

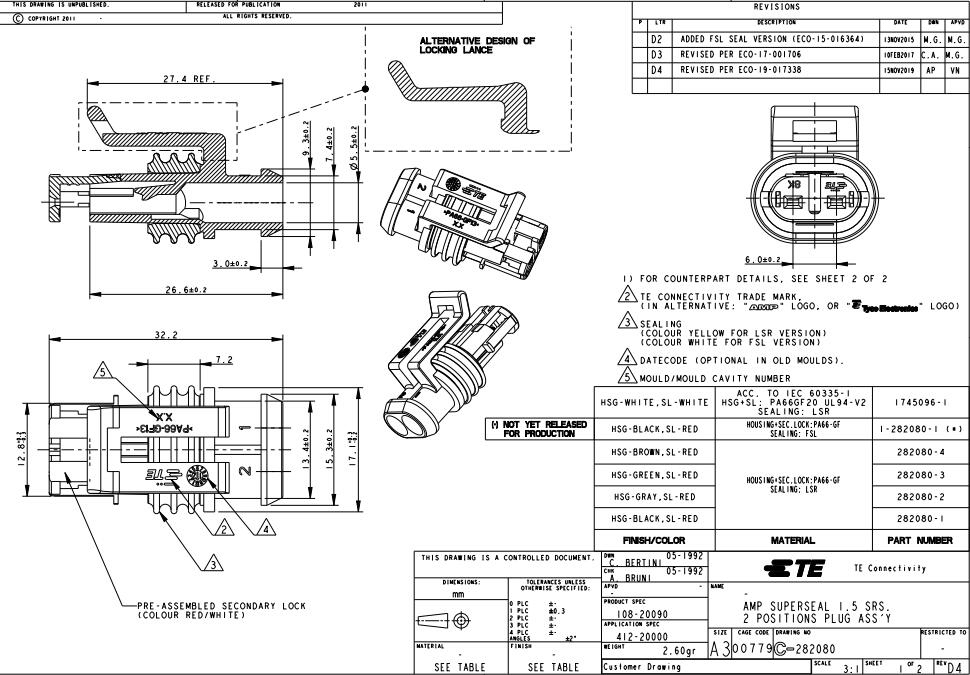

282080-1 Drawings

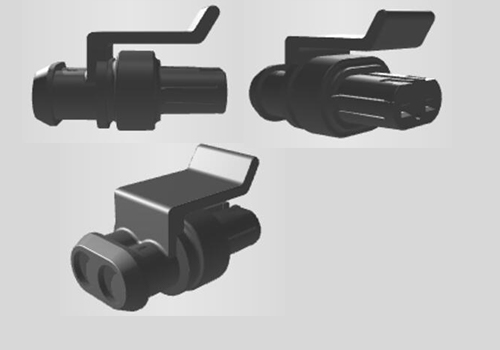

282080-1 3D Model
TE Connectivity AMP Connectors 282080-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity AMP Connectors 282080-1.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 9 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Free Hanging (In-Line) | |
| Material | Polyamide | |
| Contact Finish Mating | NOT SPECIFIED | |
| Packaging | Bulk | |
| Series | Superseal | |
| Published | 1998 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Connector Type | Plug | |
| Number of Positions | 2Positions | |
| Color | Black | |
| Number of Rows | 1Row | |
| Gender | Receptacle | |
| HTS Code | 8536.69.40.30 | |
| Fastening Type | Latch Lock | |
| MIL Conformance | NO | |
| DIN Conformance | NO | |
| IEC Conformance | NO | |
| Filter Feature | NO | |
| Contact Type | Female Socket | |
| Mixed Contacts | NO |
| Product Attribute | Attribute Value | |
|---|---|---|
| Option | GENERAL PURPOSE | |
| Pitch | 0.236 6.00mm | |
| Total Number of Contacts | 2Contacts | |
| Current Rating | 14A | |
| Empty Shell | NO | |
| Insulation Resistance | 200MOhm | |
| Note | Contacts Not Included | |
| Contact Termination | Crimp | |
| Length | 17.0942mm | |
| Width | 9.2964mm | |
| RoHS Status | RoHS Compliant |

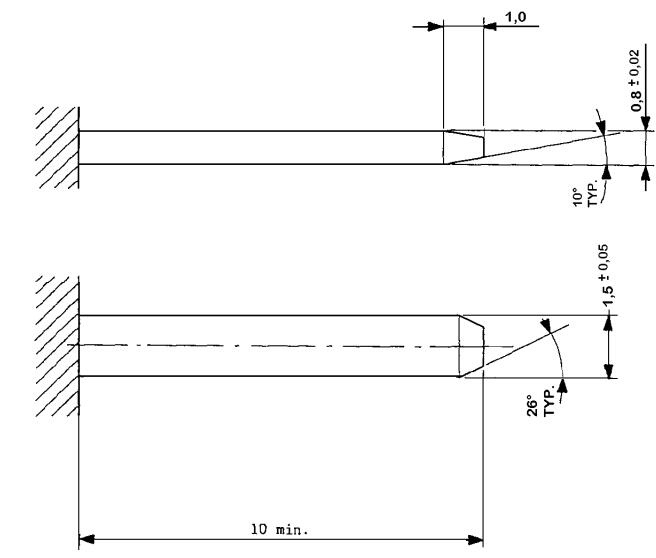

TEST TAB DIMENSIONS

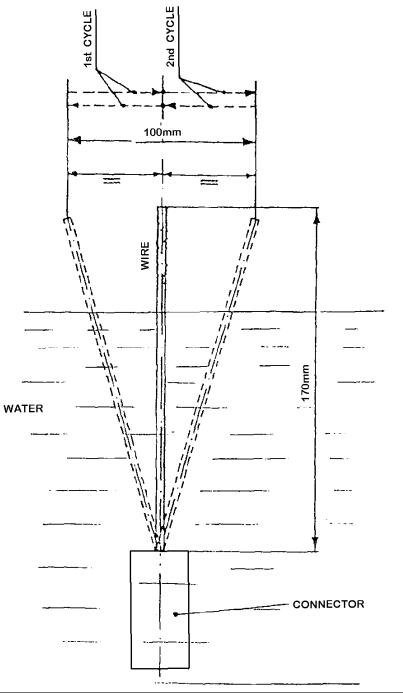

DYNAMIC IMMERSION TEST SETUP

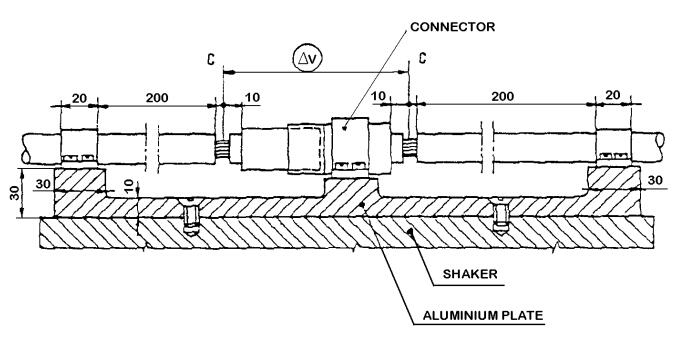

VIBRATION TEST SETUP
TE Connectivity AMP, previously Tyco Electronics AMP, is a global pioneer in the design and manufacture of electronic and electrical connectors and interconnection systems. Terminals and splices are among the products available, as are sophisticated high-speed printed circuit board connections and IC sockets, as well as USB and Circular Connectors.
